The Echelle Spectrometer

components / blazed grating / Echelle spectrum / efficiencies / technical data / photo / ORFEUS Home Page



The optical Components of the Echelle Spectrometer

Echelle spectrometer optics

A = side view
B = top view
red = long-wavelength side
blue = short-wavelength side

F = focus of the main mirror and entrance diaphragm of the spectrometers

1 = collimator mirror: the collimator mirror produces a parallel beam

2 = Echelle grating: the Echelle grating has 316 lines per millimeter and is used in orders 40 to 61. The Echelle grating is a blazed grating, i.e. the grooves are shaped as steps and the front sides of these steps have a reflecting coating, so that the reflected intensity of the grating is optimized for the desired reflection direction.

3 = cross disperser grating: The cross disperser grating has 1200 lines per millimeter, it is also a spherical mirror which focusses the parallel beam onto the detector. The grooves are perpendicular to those of the Echelle grating. Thus the individual orders of the Echelle grating are separated and are mapped one below each other.

4 = Echelle detector: The detector is a high sensitivity, photon counting and imaging detector with a sensitive area of 40mm x 40mm. It is capable of detecting up to 30.000 photons per second.

The spectral resolution of the Echelle spectrometer is 104, i.e. at a wavelength of 100 nm one resolution element has a width of 0.01 nm. The Echelle spectrum covers a wavelength range from 90 nm to 140 nm in the Echelle orders 40 to 61.



The Principle of blazed Gratings

Blazed grating

The grooves of a blazed grating are shaped as steps. One side of these steps is mirroring, so that the incident beam will be reflected optimally back in the desired direction. The further the outfalling beam is away from this optimized direction, the weaker the beam will be.

In a given diffraction direction only certain wavelengths are reflected: those wavelengths for which the path difference from adjacent steps is an integer multiple m of the wavelength. The number m is called diffraction order. The grating equation applies to a given diffration direction (lambda = wavelength):

m x lambda = const.

For the ORFEUS Echelle grating the orders used range from 40 to 65 (but usually only the orders up to 61 contain useful information, as wavelengths below the Lyman limit are absorbed by interstellar hydrogen). Thus a certain diffraction direction may contain different wavelengths from different orders.

A second grating is necessary to separat these orders lying one upon the other: a cross disperser grating whose grooves are perpendicular to those of the Echelle grating. This configuration maps the individual Echelle orders one below the other onto the detector.



How the Echelle Detector registers the Echelle Spectrum

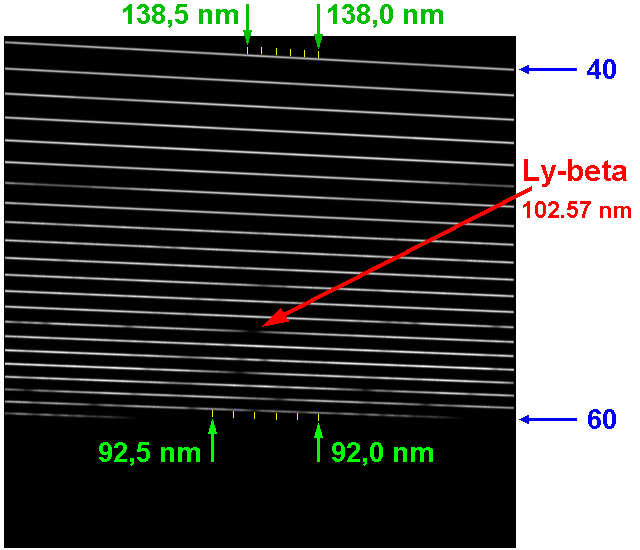

Echelle spectrum

The sensitive area of the Echelle detector is 40mm x 40mm. The Echelle spectrum is mapped as bright stripes onto the detector. Each stripe is one order of the Echelle spectrum. Orders 40 and 60 are marked in the image, also some wavelegth positions are marked within these orders. Additionally the hydrogen Ly-beta absorption line is marked. Absorption lines are visible as dark spots within the bright stripes of the individual orders.

The image shows a simulated Echelle spectrum. It is composed from actual spectra recorded with the Berkeley spectrometer during the ORFEUS I mission and with the IUE satellite.
A laboratory measurement of an Echelle spectrum is found here and 2 examples for ORFEUS II Echelle images are found here.

For extraction of the spectrum the brightness along each stripe is measured and each position on the detector is associated a certain wavelength. Thus a diagram is produced which shows the intensity against the wavelength: the extracted spectrum.



Efficiencies

Echelle efficiency

This graphics shows the efficiencies of the individual optical components of the Echelle spectrometer and the resulting total efficiency of the whole instrument. The efficiencies of the individual components are given in percent (left axis), while the efficiency of the whole instrument is given as effective area in cm2 (right axis).

Components:



Technical Data

Main mirror
Collimator miror
Echelle grating
Cross disperser grating
Manufacturer
REOSC
Zeiss
Zeiss
Zeiss
Material
Zerodur
Homosil
Herasil
Homosil
Coating
Ti/Ir
SiC
SiC
SiC
Surface
parabolic
parabolic
(off-axis)
plane
spherical
Focal length
2426 mm
203.5 mm
-
502.4 mm
Diameter
1020 mm
-
-
-
Width
-
90 mm
91 mm
94 mm
Length
-
144 mm
254 mm
214 mm
Thickness
130 mm
34 mm
35 mm
41 mm
Center thickness
27 mm
-
-
-
Weight
75 kg
0.7 kg
1.3 kg
1.5 kg
Grating manufacturer
-
-
Milton Roy
Zeiss
Lines per mm
-
-
316
1200
Blaze angle
-
-
62.6°
optimized at 100 nm
Remarks
109 holes in the
backside cause a
weight reduction
of about 70%.
-
-
-

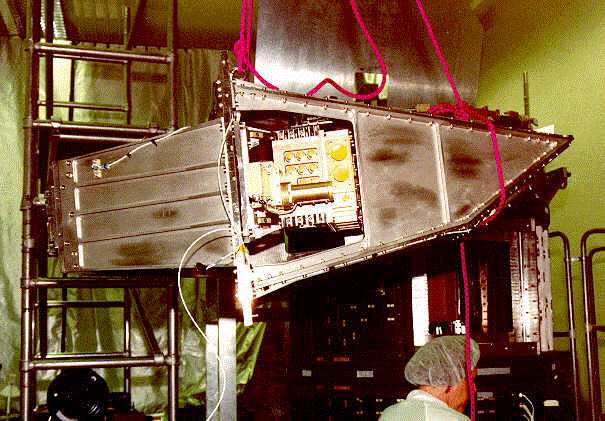

Photo of the Echelle spectrometer

Photo of the Echelle Spectrometer

This photo shows the Echelle spectrometer during mounting into the ORFEUS telescope.
The left side of the spectrometer is located inside the telescope. This is the location of the cross disperser grating.
Through the opening in the center the Echelle detector is visible. The yellow protective covers of the high voltage connectors are visible, and also the round longish motor of the detector shutter.
The slant at the right side carries the Echelle grating.
The collimator mirror is not mounted within the Echelle spectrometer, but is mounted within the telescope itself.
